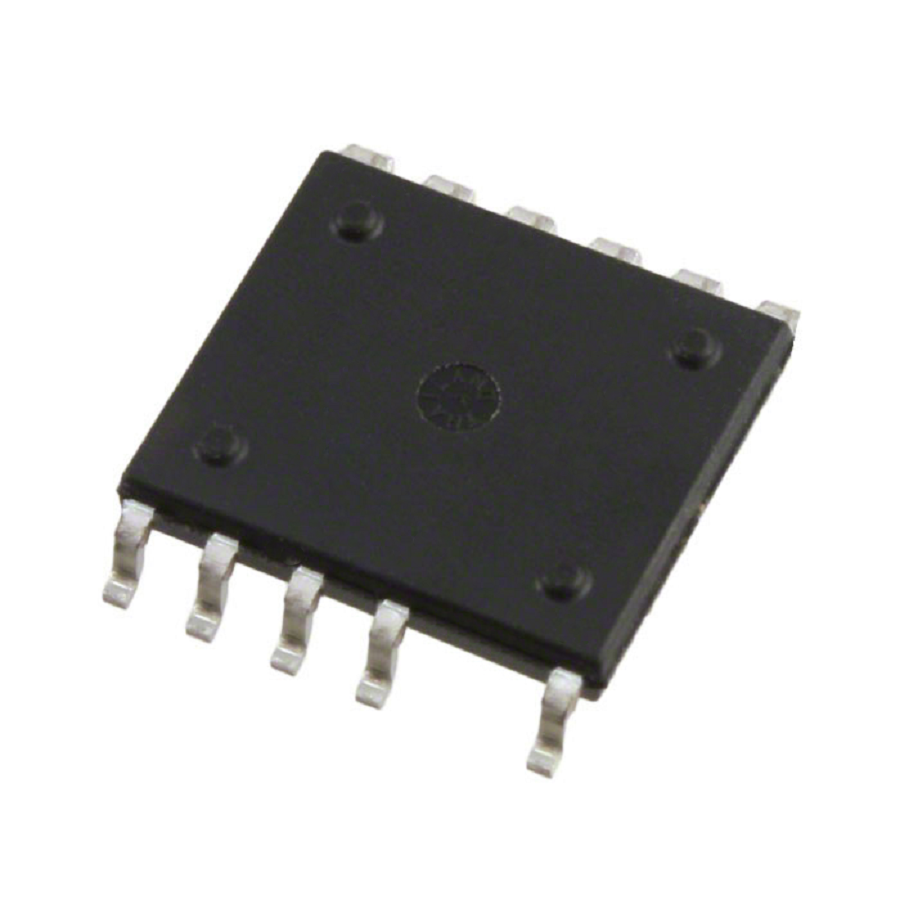

LNK6664K-TL
Manufacturer:
Power Integrations
Mfr.Part #:
LNK6664K-TL
Datasheet:
Description:
AC to DC Converters ESOP-12 SMD/SMT 50 V 22 W Flyback 64 %
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Power Rating | 20 W |
| Packaging | Reel |
| RoHS | Compliant |
| Output Voltage | 50 V |
| Max Power Dissipation | 39 W |
| Max Supply Voltage | 265 V |
| Min Supply Voltage | 85 V |
| Breakdown Voltage | 650 V |
| Topology | Flyback |
| Switching Frequency | 136 kHz |
| Output Power | 22 W |
| Duty Cycle | 64 % |
| Fault Protection | Over Temperature, Over Voltage, Short Circuit |
| Isolation | Isolated |
Stock: 1688
Distributors
pcbx
pcbxUnit Price$0.46936
Ext.Price$0.46936
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.46936 | $0.46936 |
| 10 | $0.44857 | $4.48570 |
| 25 | $0.42870 | $10.71750 |
| 50 | $0.40971 | $20.48550 |
| 100 | $0.39156 | $39.15600 |
| 300 | $0.37050 | $111.15000 |
| 500 | $0.35057 | $175.28500 |
| 1000 | $0.33171 | $331.71000 |
| 3000 | $0.32263 | $967.89000 |
| 5000 | $0.31380 | $1569.00000 |
| 10000 | $0.30521 | $3052.10000 |
